- All 8 pins of Port B can be used on a 16F1937 device
- RB0-RB7 can be used as digital inputs
- RB0-RB7 can be used as digital outputs
- An external interrupt pin is possible on RB0
- An external IOC interrupt is possible on any of RB0-RB7
- AN8-AN13 can be used as analogue inputs (=6 analogue inputs on port B)

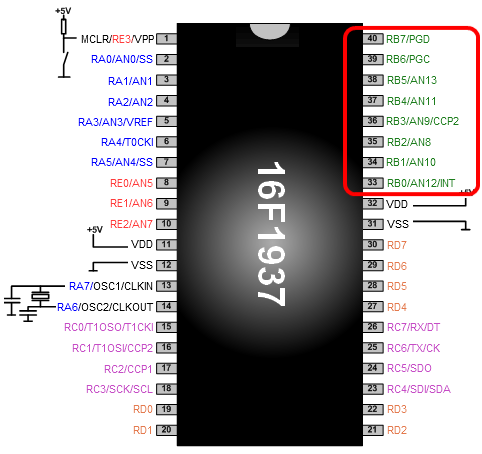

- The pins of Port B are mapped on the 16F1937 microcontroller as on this drawing
- The pins of Port B are connected to the 9-pin D-type connector of port B on the Multiprogrammer board.
This port is connected to the rest of the PICmicro internals by an 8-bit bus system.
